Kia Stinger CK: ISG (Idle Stop & Go) System / Seat belt switch

Kia Stinger (CK) 2018-2023 Service Manual / Engine Control / Fuel System / ISG (Idle Stop & Go) System / Seat belt switch

Description and operation

Description

Via the seat belt/door switch, the ISG function can detect if the driver side seat belt is fastened and the driver side door is closed. If the driver side seat belt/door are not fastened/closed, the ISG system will not operate. If the seat belt/door are unfastened/opened, the engine will not start or stop by the ISG function for safety reasons.

Repair procedures

Removal

1.	Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")

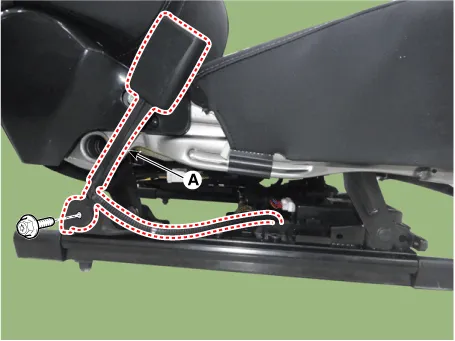

Remove the front seat belt buckle (A) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.9 - 39.8 lb·ft)

Installation

1.	Install in the reverse order of removal.
