Oil pressure characteristics input
| Oil-pressure characteristics input |
| Solenoid valve oil-pressure characteristics input procedure |
| 1. |

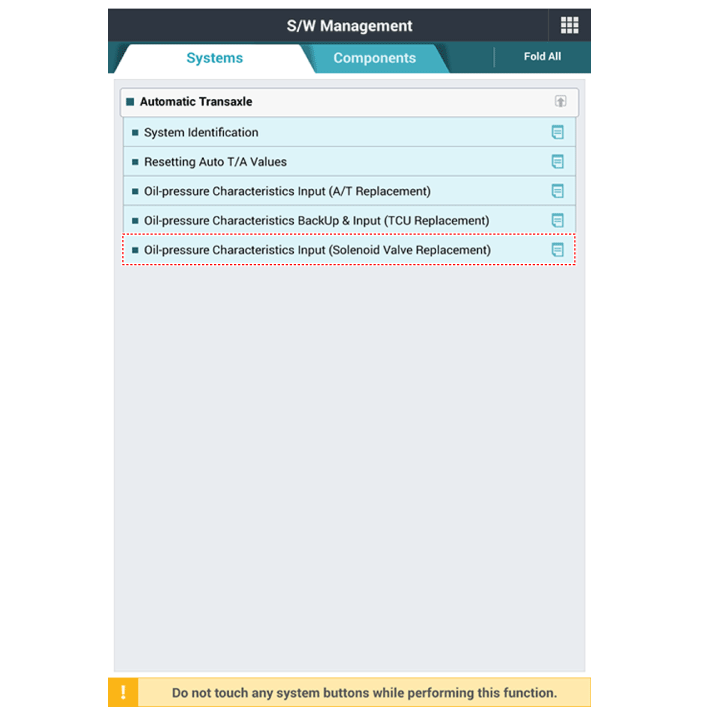

Perform the oil-pressure characteristics input procedure using the KDS.
|
| 2. |

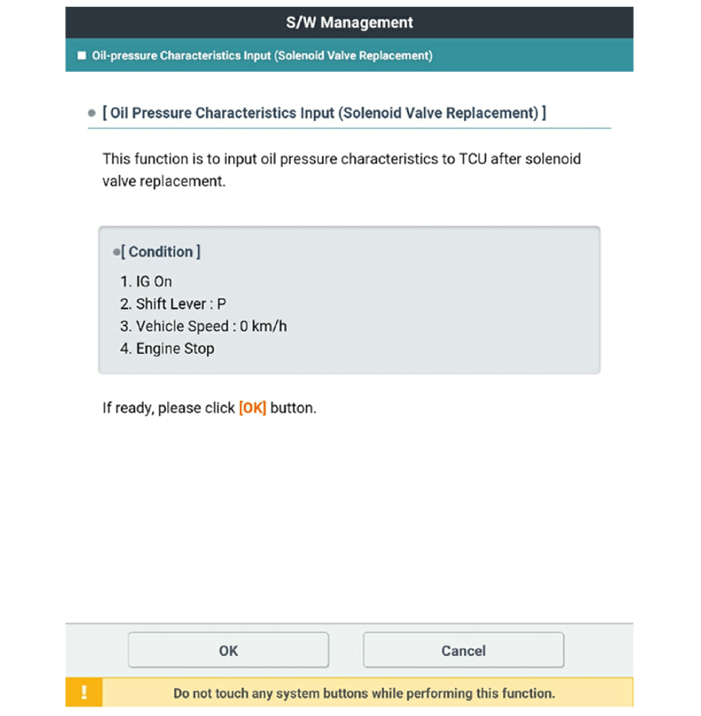

Click the "OK" button after checking the condition.
|
| 3. |

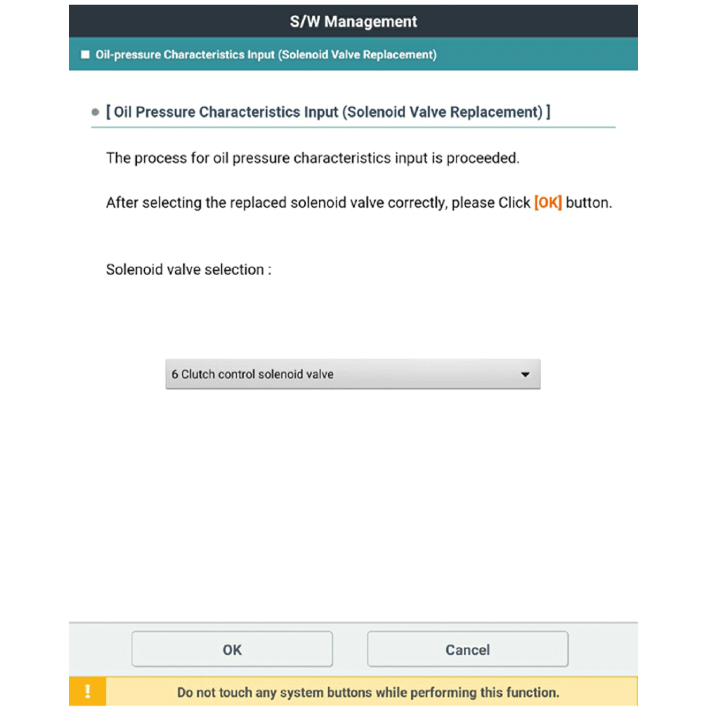

Click the "OK" button after selecting the replaced solenoid valve.
|
| 4. |

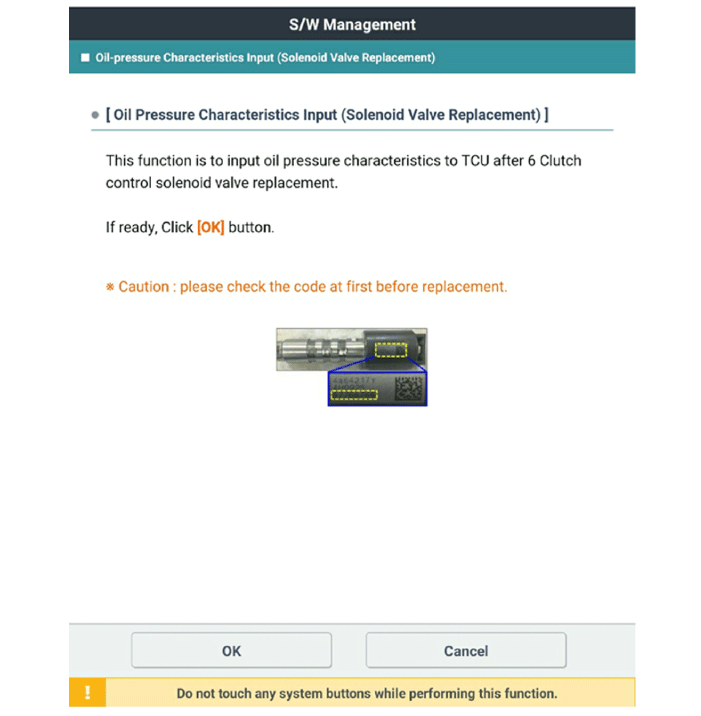

Check the code that was recorded before installing the new solenoid valve.
|
| 5. |

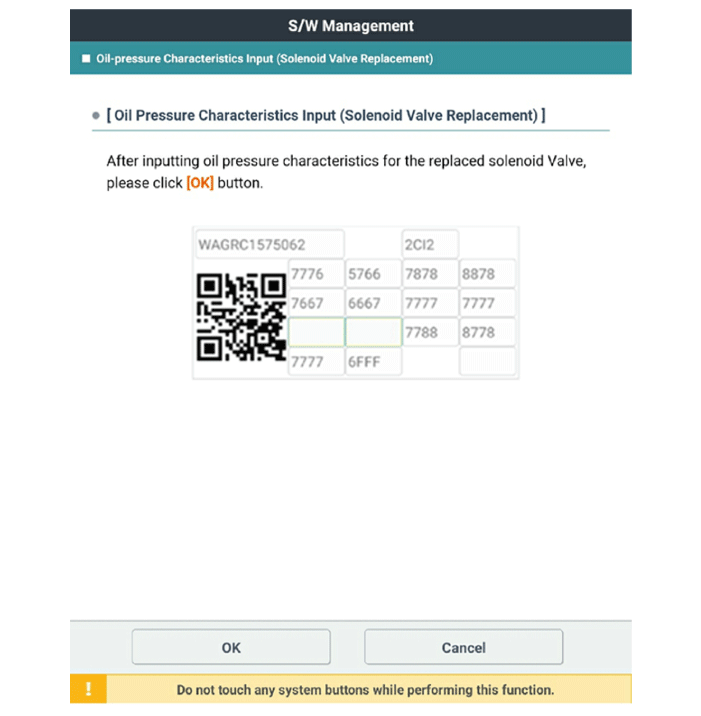

Click the "OK" button after inputting oil pressure characteristics for the replaced solenoid valve.
|
- Fluid
- Oil Filter
- Oil Pump Unit (OPU)
- Electronic Oil Pump (EOP)
- Oil Cooler
- Valve Body
- 8LR Brake Control Solenoid Valve (8LR/B_VFS)
- 6 Clutch Control Solenoid Valve (6/C_VFS)
- 27 Brake Control Solenoid Valve (27/B_VFS)
- 35R Clutch Control Solenoid Valve (35R/C_VFS)
- 4&OD Clutch Control Solenoid Valve (4&OD/C_VFS)
- UD Clutch Control Soleoind Valve (UD/C_VFS)
- Line Pressure Control Solenoid Valve (LINE_VFS)
- Damper Clutch Control Solenoid Valve (D/C_VFS)
- P Position Solenoid Valve (ON/OFF)
- D Position Solenoid Valve (ON/OFF)
- R Position Solenoid Valve (ON/OFF)
- SS-A Solenoid Valve (ON/OFF)
- ATF Warmer
Automatic Transmission System
Components and components location
Components
1. Torque converter
2. Electric Oil Pump (EOP)
3. Parking switch (Inhibitor switch)
4. Main connector
5. AT ...
Fluid
Repair procedures
Automatic Transmission Fluid
(ATF) Level Check
1.
Start the engine to warm up the ATF.
...
