Kia Stinger: Blind-Spot Collision Warning (BCW) / Blind-Spot Collision Warning (BCW) Warning Lamp

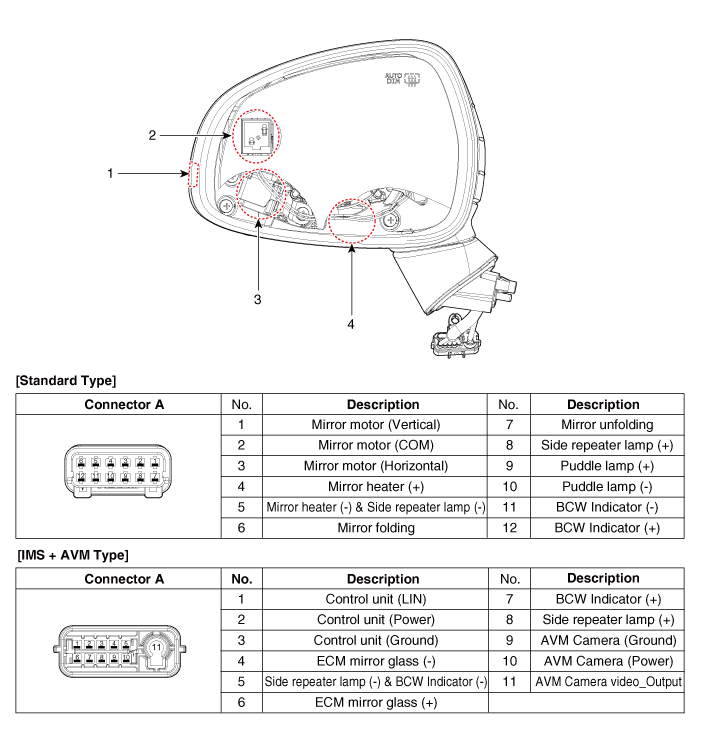

Components and components location
![](images/blind_spot_collision_warning_bcw_warning_lamp-765/328/sckbe8011l.gif)
1. Side repeater lamp
2. BCW Indicator
|
3. AVM Camera
4. Puddle lamp
|
Repair procedures
1. |
Disconnect the negative (-) battery terminal.
|
2. |

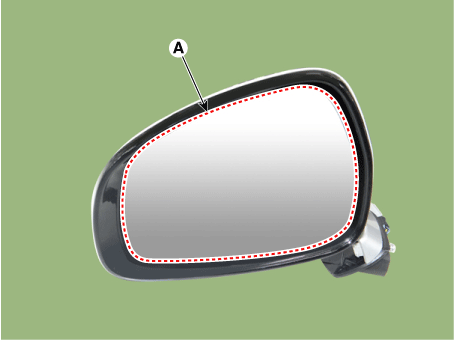

Remove mirror (A) to the direction as shown in the picture using (-)
screw driver.
![](images/blind_spot_collision_warning_bcw_warning_lamp-765/328/sckbe7270d.gif)
•
|

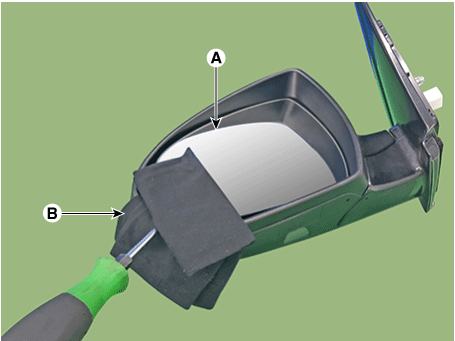

Protect mirror from removing tool with cloth (B) wrapped.
|
•
|
Be careful not to damage mirror and mirror housing during
removing process.
|
•
|
Apply force around the center of mirror because to apply
force the end of mirror will break it.
![](images/blind_spot_collision_warning_bcw_warning_lamp-765/328/stlbe70001d_n.gif)
|
|

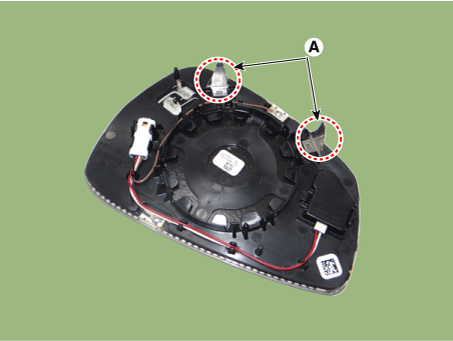

Be careful not to damage the fixing clips (A).
![](images/blind_spot_collision_warning_bcw_warning_lamp-765/328/sckbe7396d.gif)
|
|
3. |

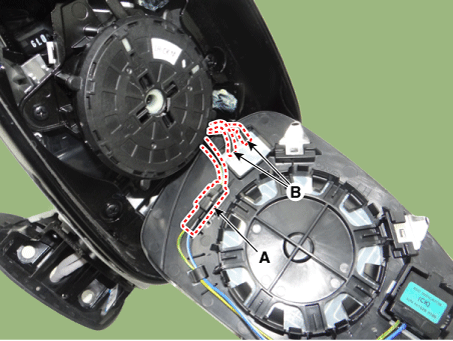

Disconnect the heater connectors (B) and BCW indicator connector (A)
from the mirror.
![](images/blind_spot_collision_warning_bcw_warning_lamp-765/328/sckbe7271d.gif)
|
4. |

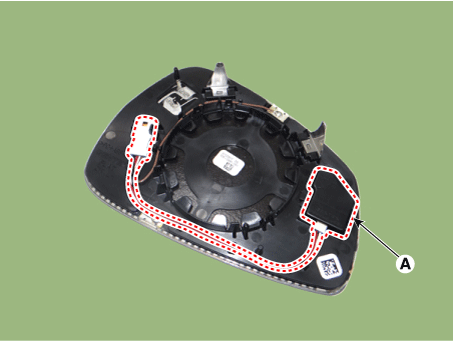

Remove the BCW indicator (A) from the mirror.
![](images/blind_spot_collision_warning_bcw_warning_lamp-765/328/sckbe7352d.gif)
|
1. |
Install the BCW indicator.
|
2. |
Connect the heater connectors and BCW indicator connector.
|
4. |
Connect the negative (-) battery terminal.
|
1. |
Remove the outside rear view mirror.
(Refer to Body - "Outside Rear View Mirror")
|
2. |

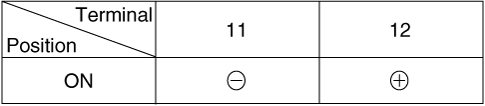

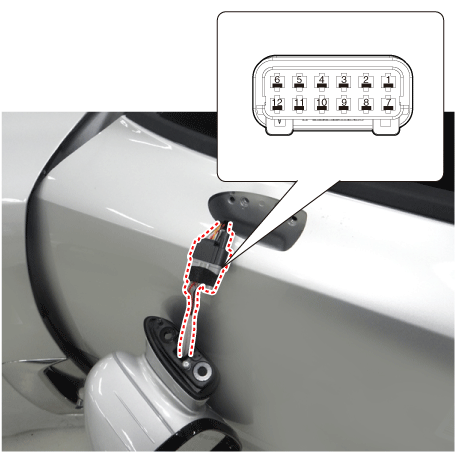

Verify that the mirror operates properly as shown in the below table.
![](images/blind_spot_collision_warning_bcw_warning_lamp-765/328/sckbe7272d.gif)
![](images/blind_spot_collision_warning_bcw_warning_lamp-765/328/sckbe8012l.gif)
|
Schematic diagrams
Circuit Diagram
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash ...
Components and components location
Component Location
1. Integrated body control unit
(IBU)
2. Interior antenna 1
3. Interior antenna 2
4. Tailgate open swit ...
