Kia Stinger CK: Blower / Blower Motor
Kia Stinger (CK) 2018-2023 Service Manual / Heating, Ventilation And Air Conditioning / Blower / Blower Motor
Repair procedures
| Inspection |
| 1. |

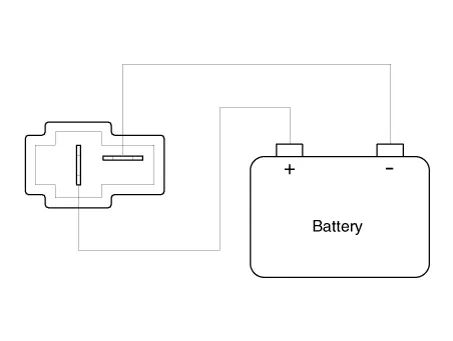

Connect the battery voltage and check for blower motor operation.
|
| 2. |
If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation. |
| 3. |
Replace the blower motor if it is proved that there is a problem with it. |
| Replacement |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the crash pad under cover (A).
|
| 3. |

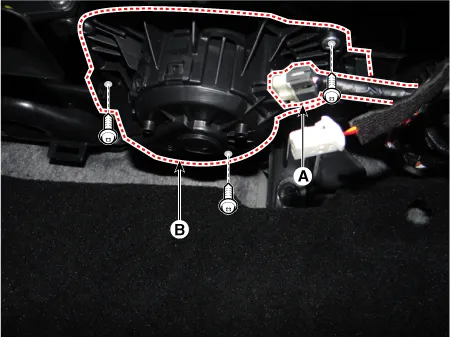

Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.
|
| 4. |
Install in the reverse order of removal. |
