Kia Stinger CK: Hood / Hood Latch Release Handle

Kia Stinger (CK) 2018-2023 Service Manual / Front Seat Belt / Hood / Hood Latch Release Handle

Components and components location

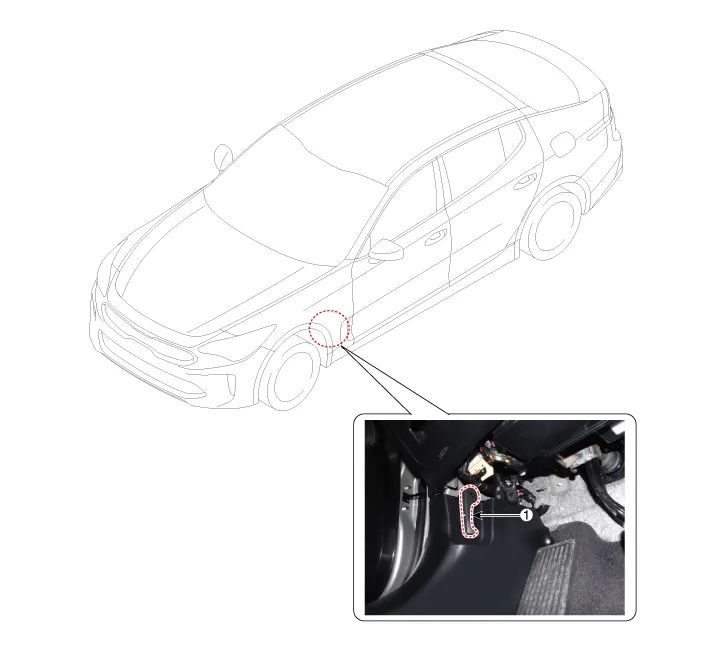

Component Location

1. Hood latch release handle

Repair procedures

Replacement

1.	After loosening the mounting screw, remove the hood latch release handle (A).

Install in the reverse order of removal.

•	Make sure that the hood latch cable is connected properly.

•	Make sure that the hood locks/unlocks and opens/closes properly.
