Kia Stinger CK: Maintenance / Power Train

Kia Stinger (CK) 2018-2023 Service Manual / Maintenance / Power Train

Contents:

Air Cleaner Filter ➤

Battery ➤

Cooling System ➤

Drive Belt ➤

Engine Oil and Filter ➤

Exhaust System

Repair procedures
Inspection
1.

Visually check the pipes, hangers and connections for severe corrosion, leaks or damage.

2.

Check for unusual exhaust sounds or abnormal exhaust fumes.

Fuel Filter (For Diesel engine only) ➤

Spark Plug ➤

Vapor Hose and Fuel Filler Cap

Repair procedures
Inspection

Vapor hose

1.

Check all the clamps for tightness and the connections for leakage.

2.

Visually check the vapor lines and hoses for cracks, leaks, loose connections, or deformation.

Fuel filler cap

1.

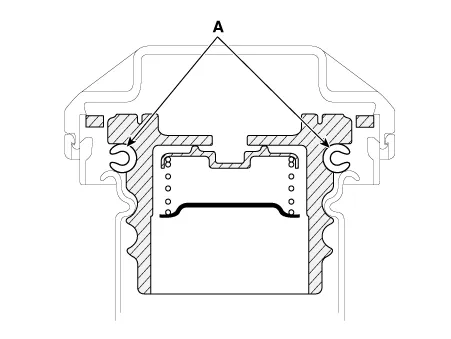

Visually check that the fuel tank cap assembly and gasket (A) are not deformed or damaged.

Fluid (ATF) ➤
