Kia Stinger: Floor Console / Floor Console Assembly

Kia Stinger CK 2018-2025 Service Manual / Body (Interior and Exterior) / Floor Console / Floor Console Assembly

Components and components location
Component Location

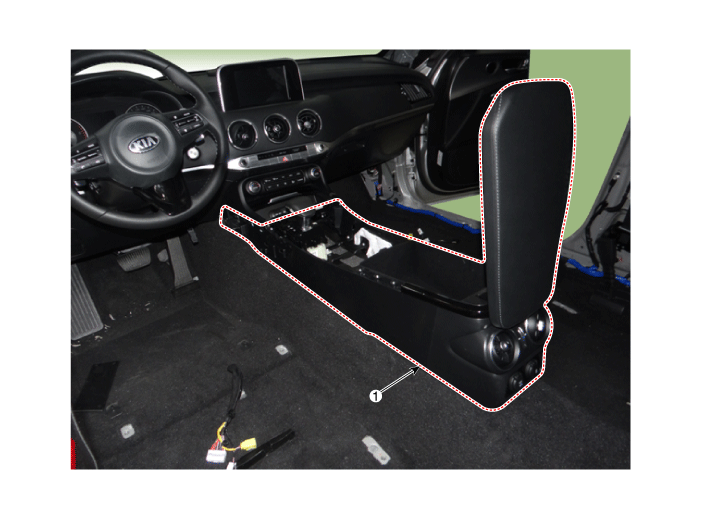

1. Floor console assembly


Repair procedures
Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

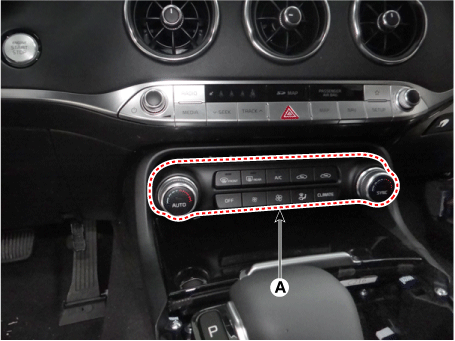

Separate the heater control unit (A).

2.

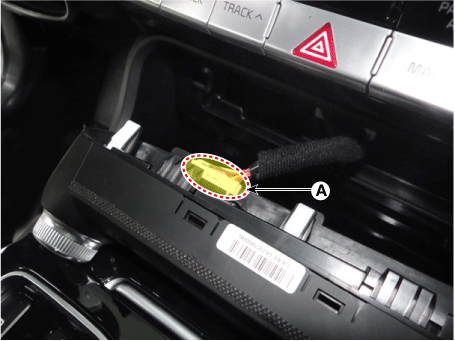

Remove the heater control unit after disconnecting the connector (A).

3.

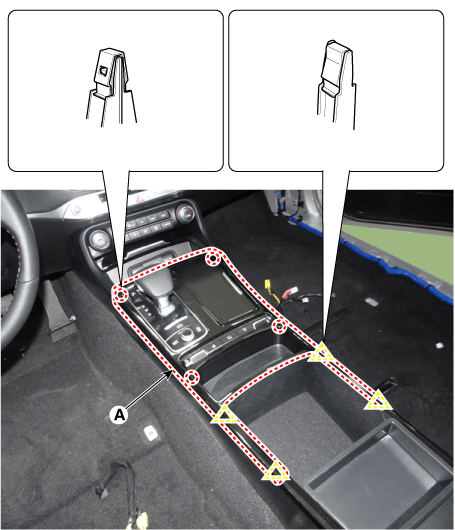

Remove the console upper cover (A) by using a remover.

4.

Remove the console upper cover after disconnecting the console upper cover connectors (A).

5.

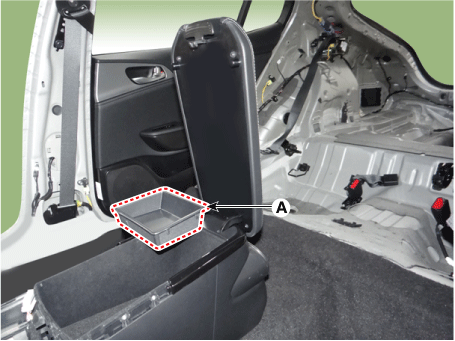

Remove the console storage box small tray (A).

6.

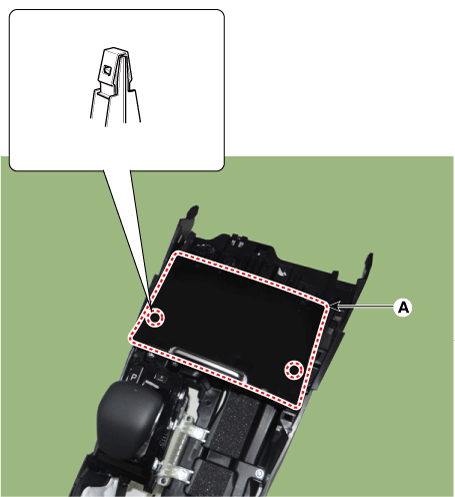

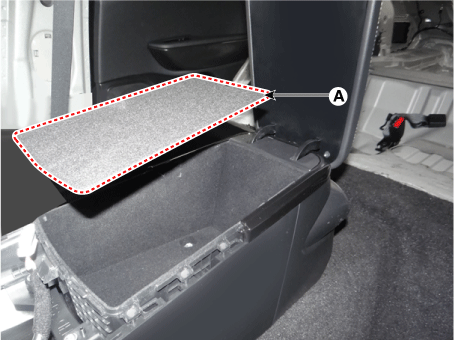

Remove the console storage box mat (A).

7.

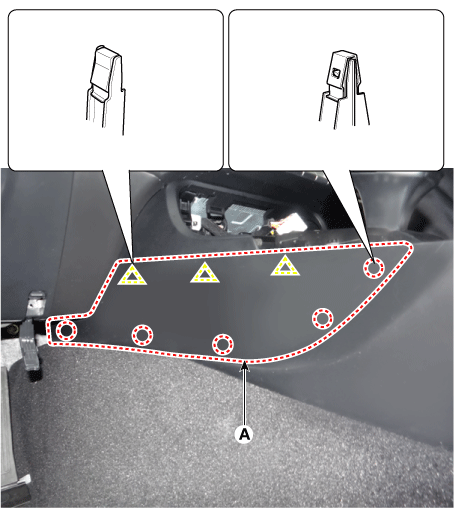

Remove the console side molding (A).

8.

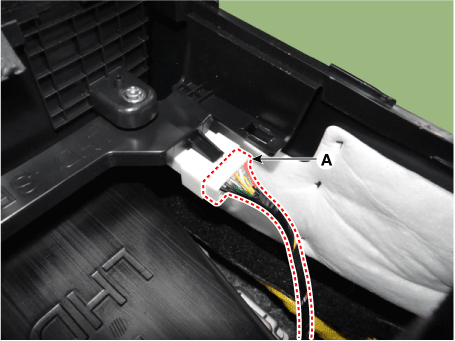

Disconnect the console upper side extension connectors (A).

9.

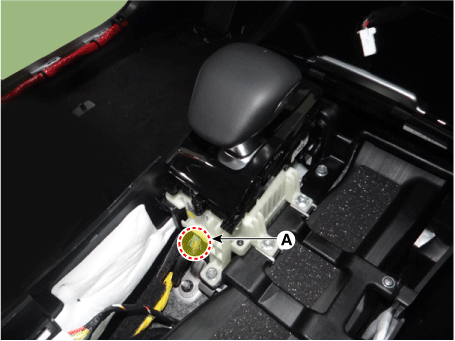

Disconnect the electronic shift lever connector (A).

10.

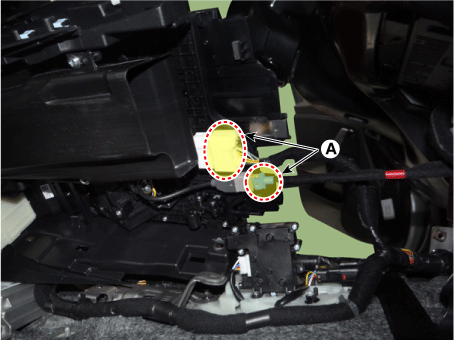

Disconnect the console lower side extension connectors (A).

11.

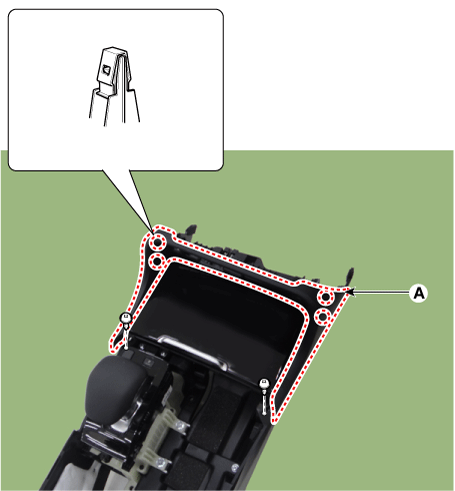

Remove the console front cover (A) after loosening the mounting screws.

12.

Remove the console tray(A).

13.

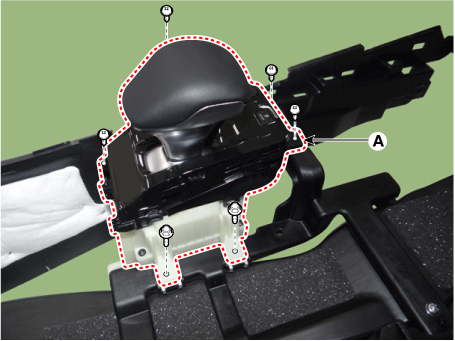

Remove the electronic shift lever (A) after loosening the mounting bolts & screws.

14.

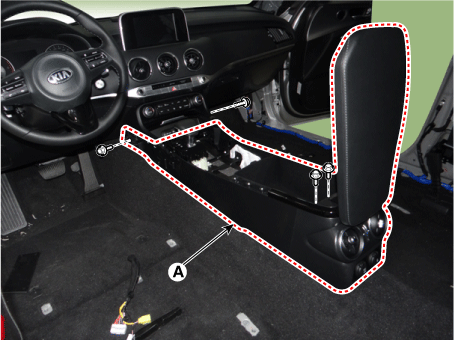

Remove the console assembly (A) after loosening the mounting bolts.

15.

Install in the reverse order of removal.



Make sure the connector are connected in properly.

Replace any damaged clips.
