Kia Stinger CK: Suspension System / Front Suspension System
Kia Stinger (CK) 2018-2023 Service Manual / Suspension System / Front Suspension System
Contents:
Components and components location

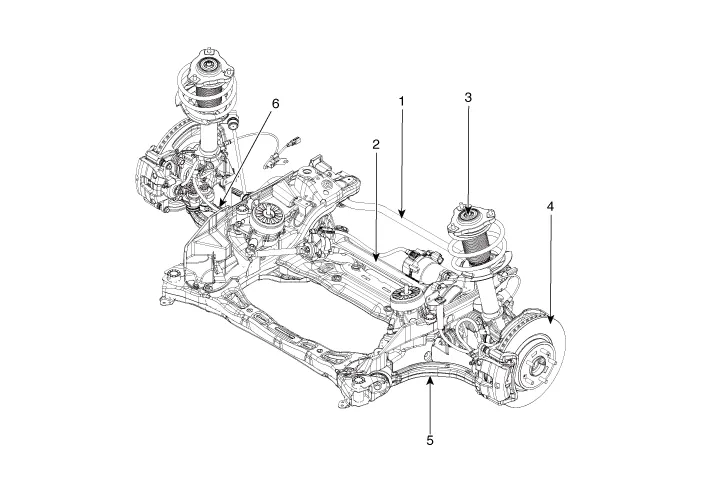

| Components Location |
| 1. Front stabilizer bar 2. Steering gear box 3. Front strut assembly |
4. Front axle 5. Compression arm 6. Lateral arm |
Front Strut Assembly ➤
Front Lower Arm ➤
Front Stabilizer Bar ➤
Sub Frame ➤
