Kia Stinger: Front Door / Front Door Outside Handle

Kia Stinger CK 2018-2023 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Outside Handle

Components and components location

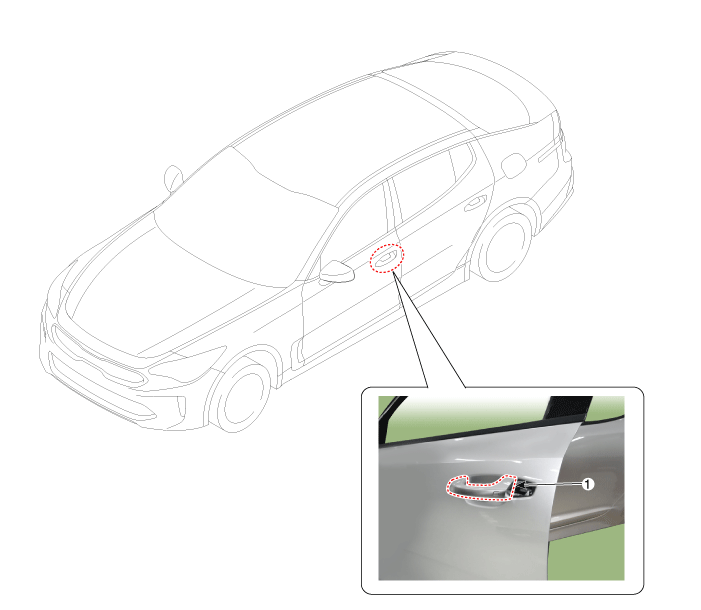

Component Location

1. Front door outside handle

Repair procedures

Replacement

Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tap around the tool and related parts to prevent damage.

•	Be careful not to scratch the door trim and other parts.

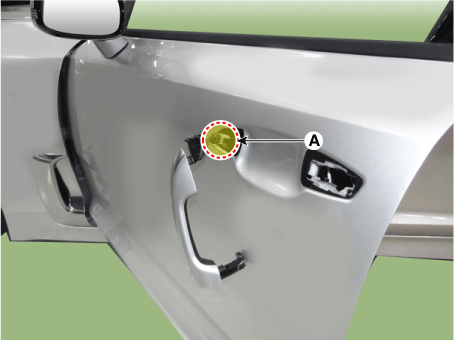

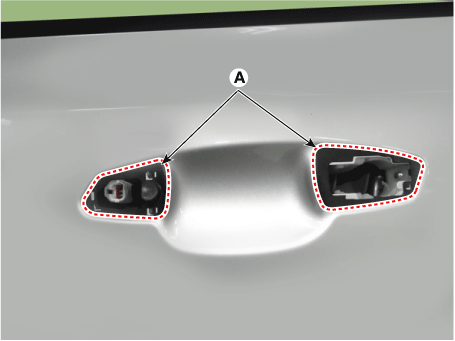

1.	Remove the front door lock cover (A) and cap (B).

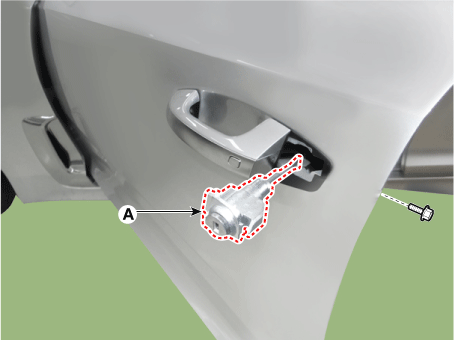

Remove the front door lock (A) after loosening the mounting bolt.

Tightening torque :

3.4 - 5.7 N·m (0.4 - 0.6 kgf·m, 2.9 - 4.3 lb·ft)

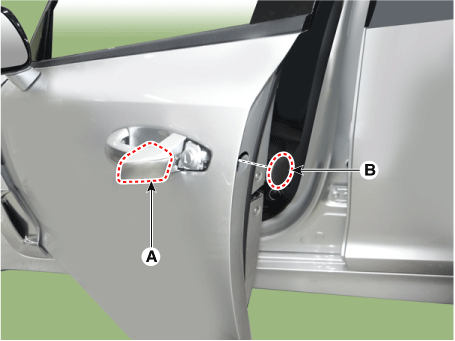

3.	Remove the front door outside handle (A) by sliding it rearward.

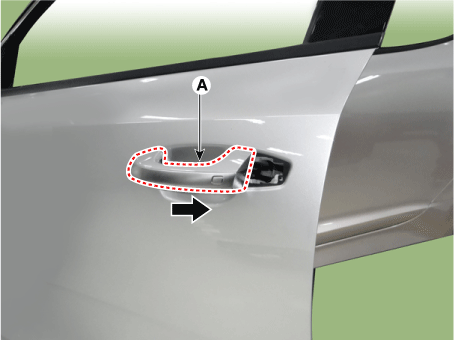

4.	Disconnect the front door outside handle connector (A).

Install in the reverse order of removal.

•	Be sure to install the outside handle pad (A) between the outside handle and the door panel

•	Check that glass operation is normal.

•	Adjust glass if necessary.

•	Make sure that the connector is connected properly.

•	Make sure that the door locks/unlocks and opens/closes properly.
