Components and components location

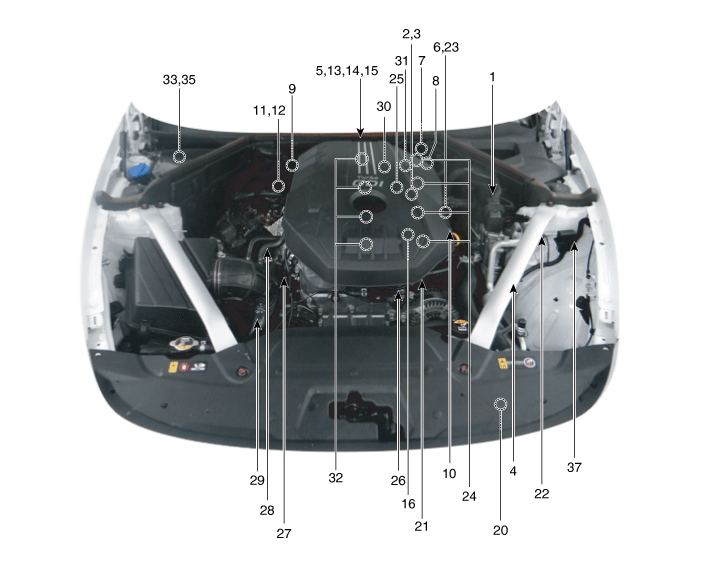

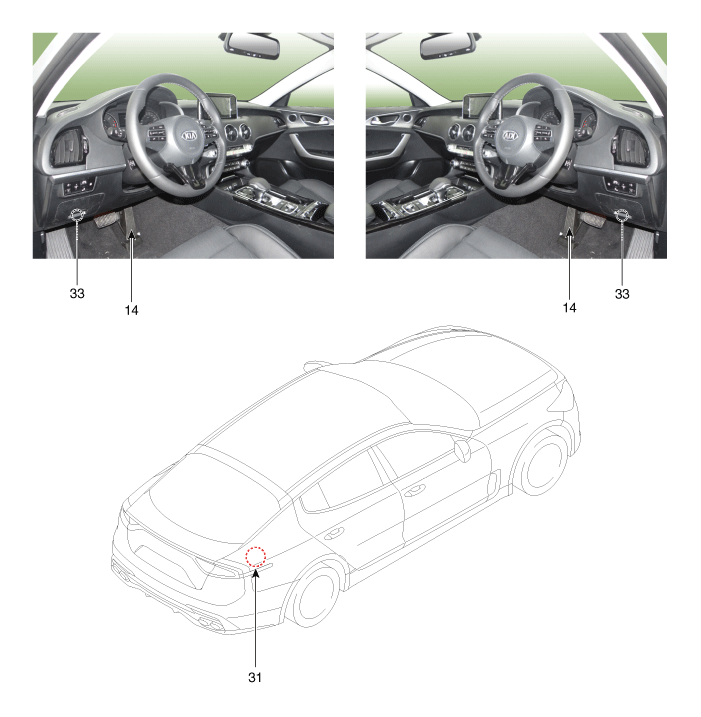

Components Location

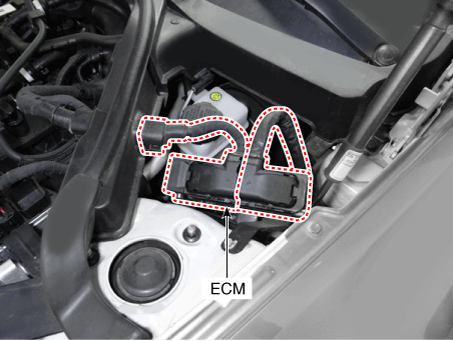

1. ECM (Engine Control Module)

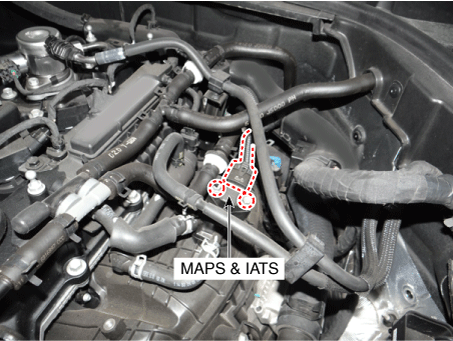

2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

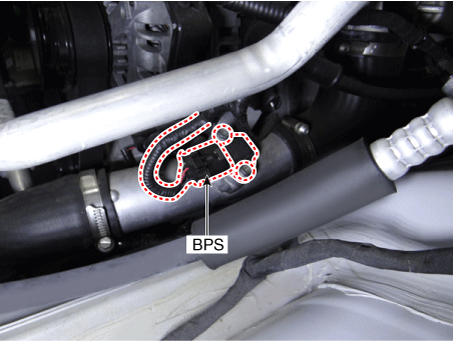

4. Boost Pressure Sensor (BPS)
5. Engine Coolant Temperature Sensor (ECTS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]

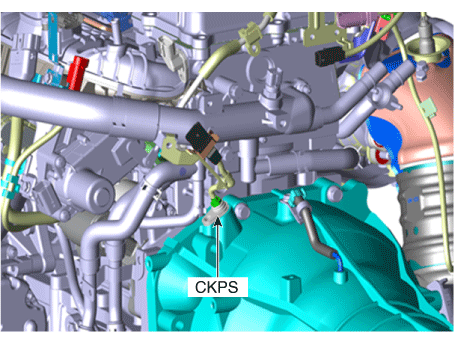

7. Crankshaft Position Sensor (CKPS)

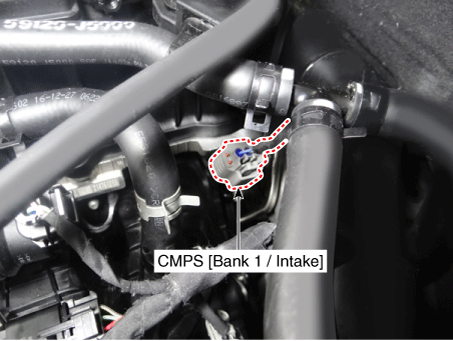

8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]

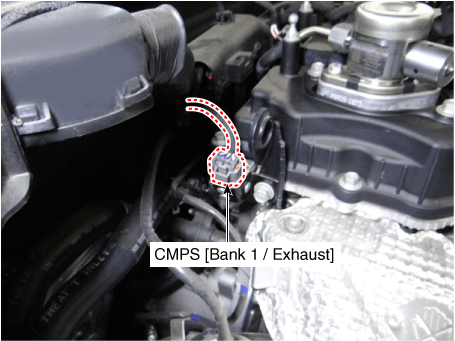

9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

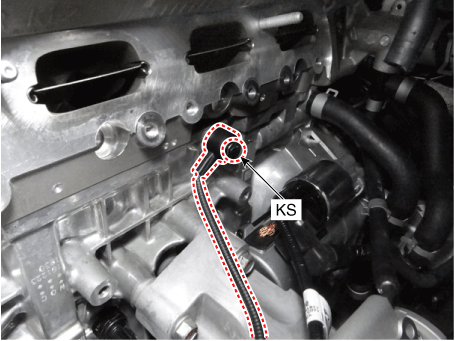

10. Knock Sensor (KS)

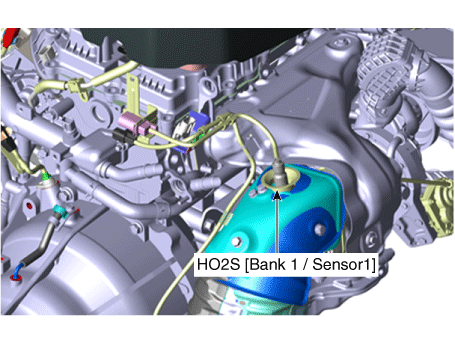

11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]

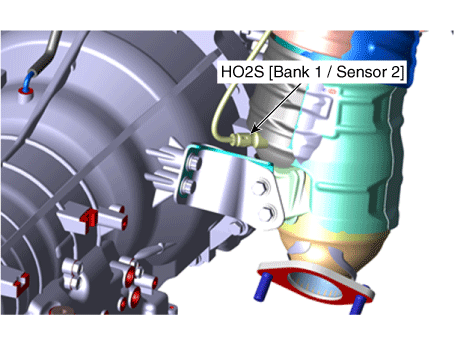

12. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]

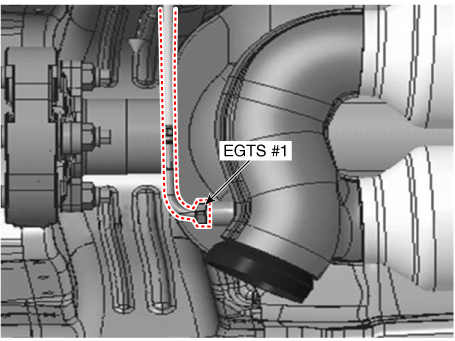

13. Exhaust Gas Temperature Sensor (EGTS) #1

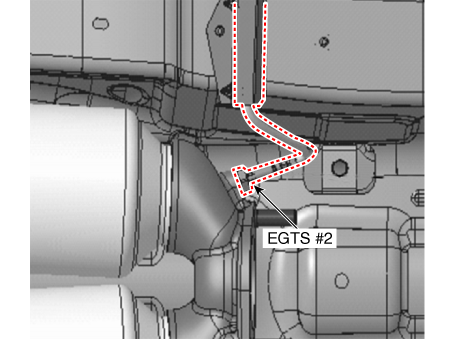

14. Exhaust Gas Temperature Sensor (EGTS) #2

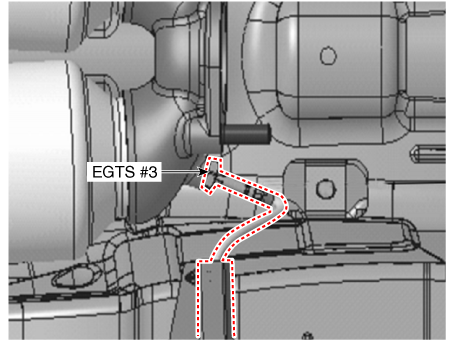

15. Exhaust Gas Temperature Sensor (EGTS) #3

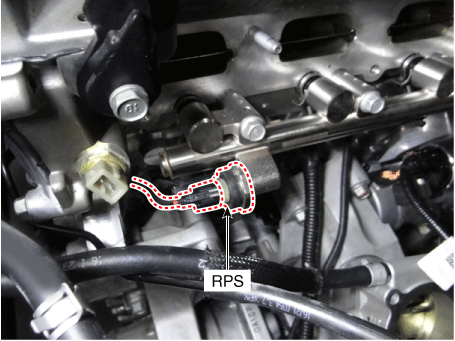

16. Rail Pressure Sensor (RPS)

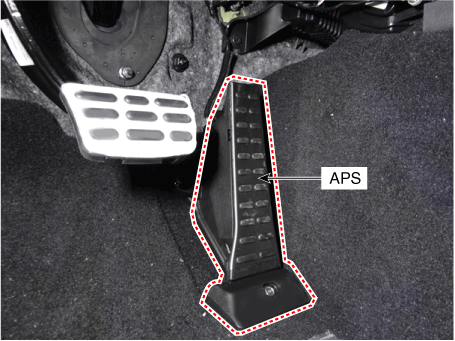

17. Accelerator Position Sensor (APS)

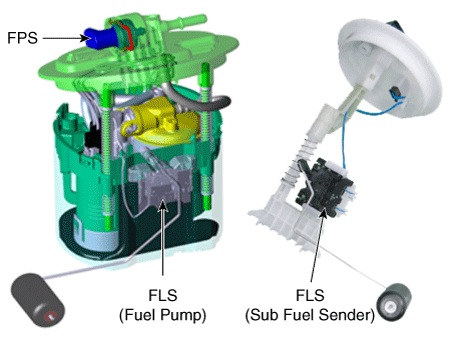

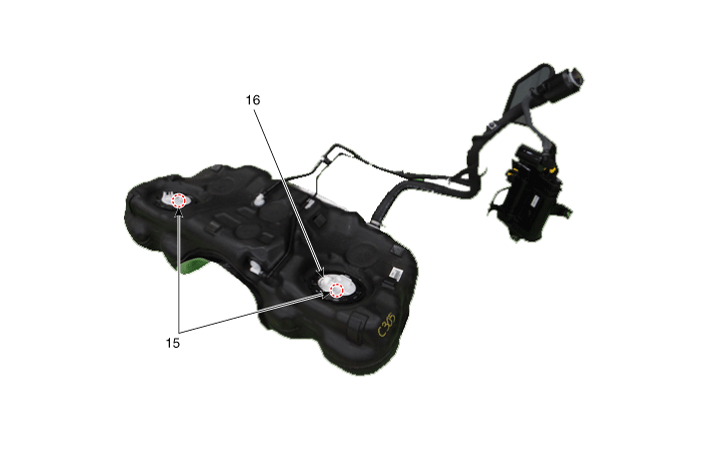

18. Fuel Level Sender (FLS)
19. Fuel Pressure Sender (FPS)

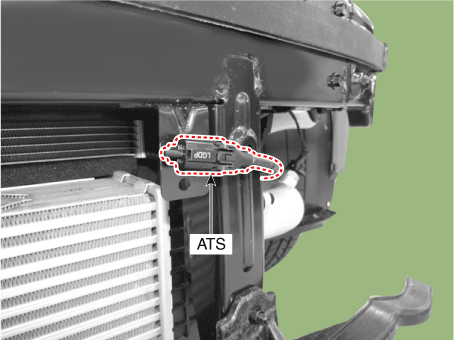

20. Ambient Temperature Sensor (ATS)

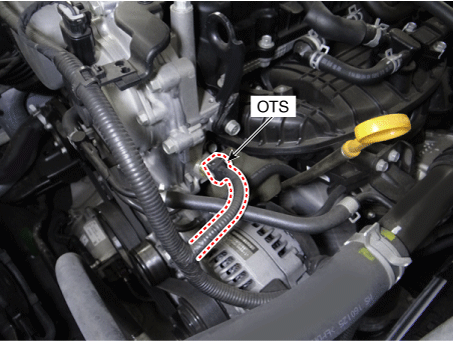

21. CVVT Oil Temperature Sensor (OTS)

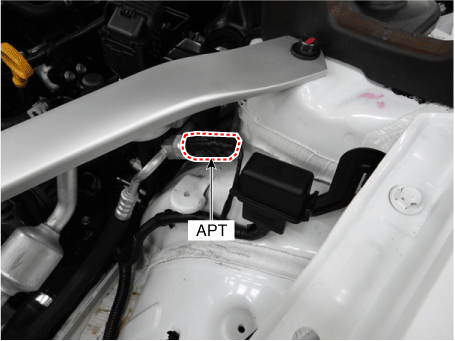

22. A/C Pressure Transducer (APT)

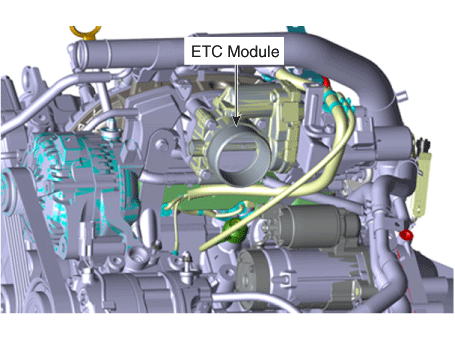

23. ETC Motor [integrated into ETC Module]

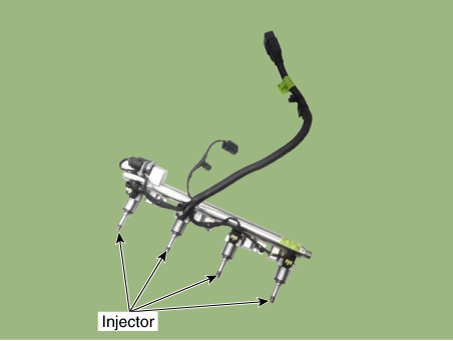

24. Injector

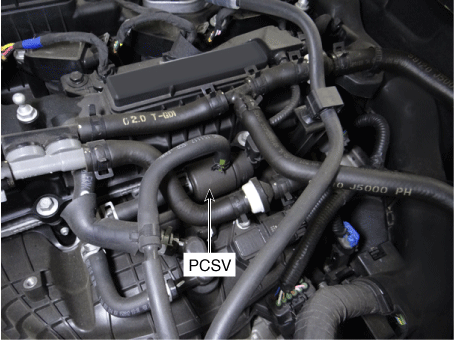

25. Purge Control Solenoid Valve (PCSV)

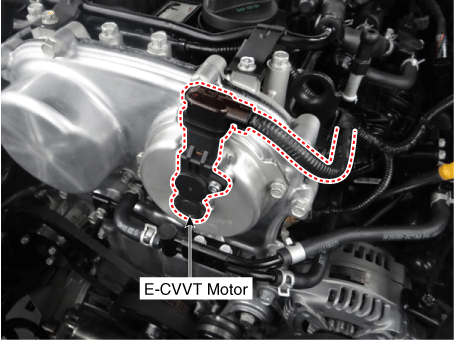

26. E-CVVT Motor [Bank 1 / Intake]

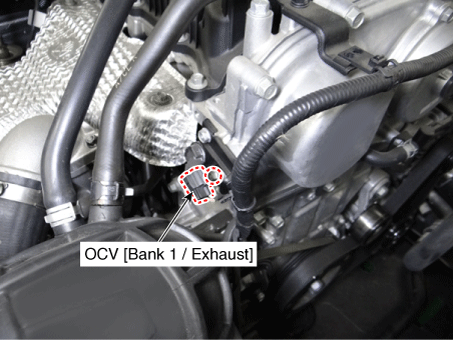

27. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]

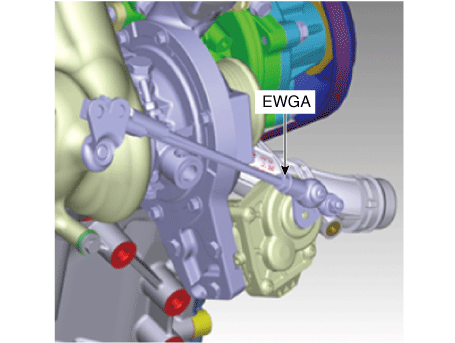

28. Electric Waste Gate Actuator (EWGA)

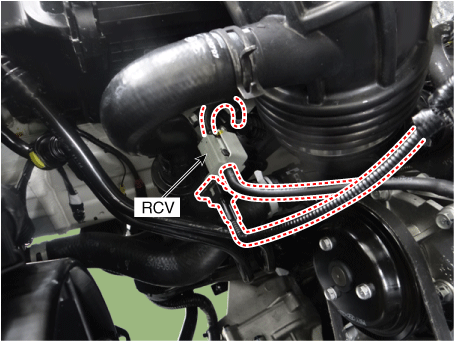

29. RCV Control Solenoid Valve

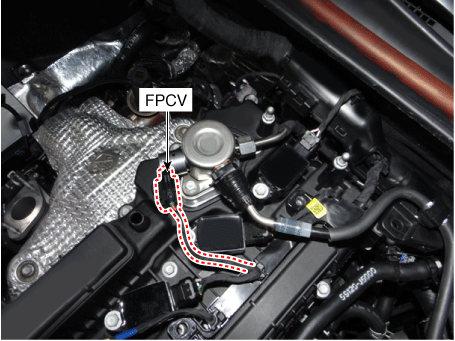

30. Fuel Pressure Control Valve (FPCV)

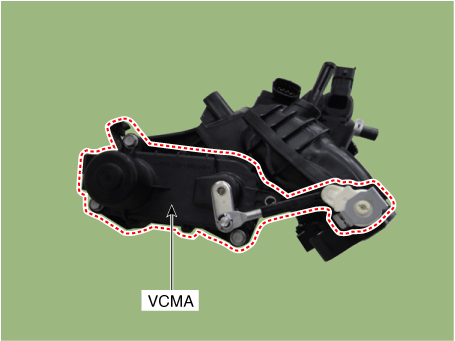

31. Variable Charge Motion Actuator (VCMA)

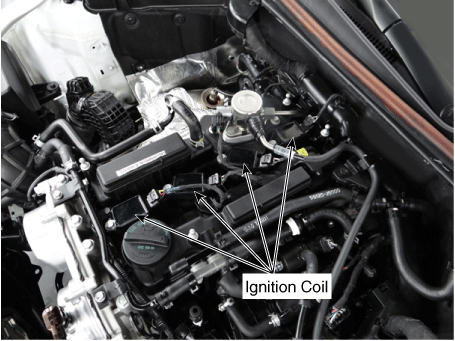

32. Ignition Coil

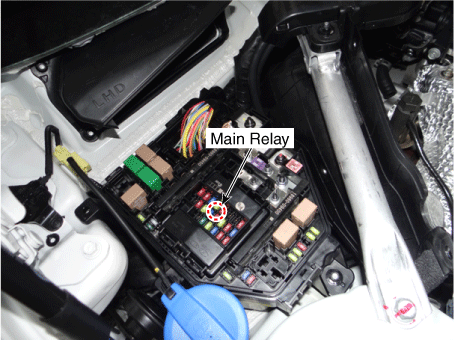

33. Main Relay

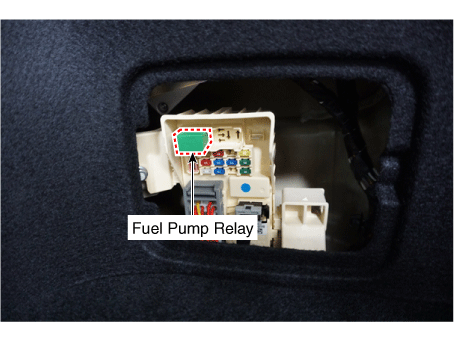

34. Fuel Pump Relay

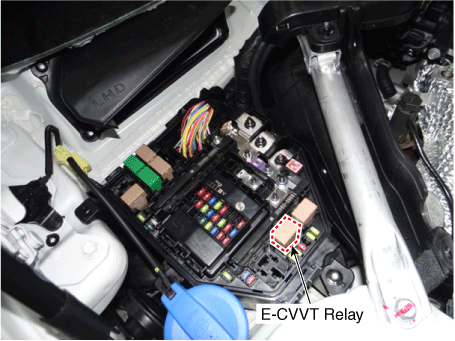

35. E-CVVT Relay

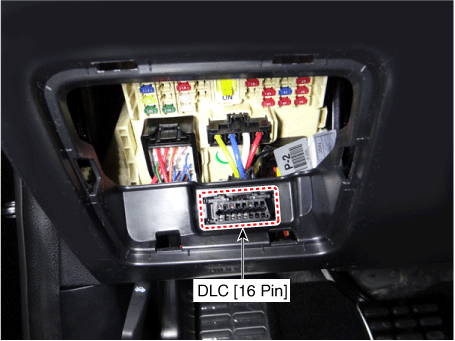

36. Data Link Connector (DLC) [16 Pin]

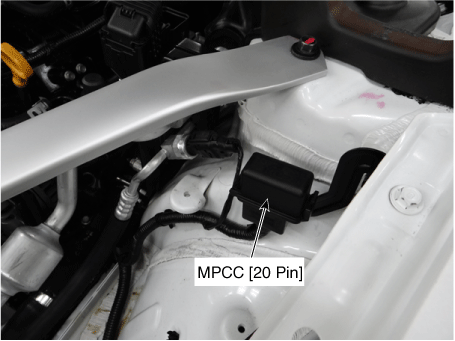

37. Multi-Purpose Check Connector [20 Pin]

1. ECM (Engine Control Module)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

4. Boost Pressure Sensor (BPS)

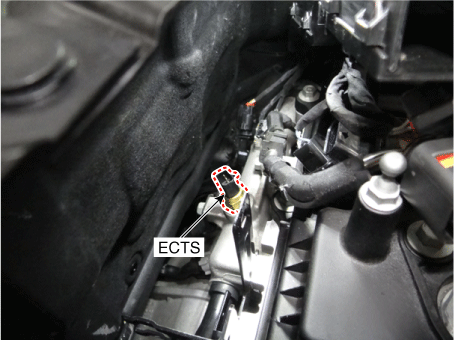

5. Engine Coolant Temperature Sensor (ECTS)

6. Throttle Position Sensor (TPS) [integrated into ETC Module]
23. ETC Motor [integrated into ETC Module]
7. Crankshaft Position Sensor (CKPS)

8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

10. Knock Sensor (KS)
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]

12. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
13. Exhaust Gas Temperature Sensor (EGTS) #1

14. Exhaust Gas Temperature Sensor (EGTS) #2
15. Exhaust Gas Temperature Sensor (EGTS) #3

16. Rail Pressure Sensor (RPS)
17. Accelerator Position Sensor (APS)

18. Fuel Level Sender (FLS)
19. Fuel Pressure Sender (FPS)
20. Ambient Temperature Sensor (ATS)

21. CVVT Oil Temperature Sensor (OTS)
22. A/C Pressure Transducer (APT)

24. Injector
25. Purge Control Solenoid Valve (PCSV)

26. E-CVVT Motor [Bank 1 / Intake]
27. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]

28. Electric Waste Gate Actuator (EWGA)
29. RCV Control Solenoid Valve

30. Fuel Pressure Control Valve (FPCV)
31. Variable Charge Motion Actuator (VCMA)

32. Ignition Coil
33. Main Relay

34. Fuel Pump Relay
35. E-CVVT Relay

36. Data Link Connector (DLC) [16 Pin]
37. Multi-Purpose Check Connector [20 Pin]


Description and operation
Description

If the Gasoline Engine Control system components (sensors, ECM, injector, etc.) fail, interruption to the fuel supply or failure to supply the proper amount of fuel for various engine operating conditions will result. The following situations may be encountered.

1.

Engine is hard to start or does not start at all.

2.

Unstable idle.

3.

Poor driveability

If any of the above conditions are noted, first perform a routine diagnosis including the basic engine checks (ignition system malfunction, incorrect engine adjustment, etc.). Then, inspect the Gasoline Engine Control system components with the HI-SCAN (Pro).



Before removing or installing any part, read the diagnostic trouble codes and then disconnect the negative (-) battery terminal.

Before disconnecting the cable from battery terminal, turn the ignition switch to OFF. Removal or connection of the battery cable during engine operation or while the ignition switch is ON could cause damage to the ECM.

The control harnesses between the ECM and heated oxygen sensor are covered by the shielded ground wires to the body in order to prevent the influence of ignition noises and radio interference. If the shielded wire is faulty, the control harness must be replaced.

When checking the generator for the charging state, do not disconnect the positive (+) battery terminal to protect the ECM from damage due to the voltage..

When charging the battery with the external charger, disconnect the vehicle side battery terminals to prevent damage to the ECM.

Malfunction Indicator Lamp (MIL)

[EOBD]

A malfunction indicator lamp illuminates to notify the driver that there is a problem with the vehicle. However, the MIL will go out automatically after 3 sequential driving cycles without the same malfunction. Immediately after the ignition switch is turned on (ON position without starting), the MIL will illuminate continuously to indicate that the MIL operates normally.

Faults with the following items will illuminate the MIL.

Catalyst

Fuel system

Manifold Absolute Pressure Sensor (MAPS)

Intake Air Temperature Sensor (IATS)

Engine Coolant Temperature Sensor (ECTS)

Throttle Position Sensor (TPS) [integrated into ETC Module]

Upstream Oxygen Sensor

Upstream Oxygen Sensor Heater

Downstream Oxygen Sensor

Downstream Oxygen Sensor Heater

Injector

Misfire

Crankshaft Position Sensor (CKPS)

Camshaft Position Sensor (CMPS)

Evaporative Emission Control System

Vehicle Speed Sensor (VSS)

ETC Motor [integrated into ETC Module]

Power Supply

ECM/ PCM

MT/AT Encoding

Acceleration Sensor

MIL-on Request Signal

Power Stage



Refer to "Inspection CHART FOR DIAGNOSTIC TROUBLE CODES (DTC)" for more information.

[NON-EOBD]

A malfunction indicator lamp illuminates to notify the driver that there is a problem with the vehicle. However, the MIL will go out automatically after 3 sequential driving cycles without the same malfunction. Immediately after the ignition switch is turned on (ON position without starting), the MIL will illuminate continuously to indicate that the MIL operates normally.

Faults with the following items will illuminate the MIL

Heated oxygen sensor (HO2S)

Manifold Absolute Pressure Sensor (MAPS)

Throttle Position Sensor (TPS) [integrated into ETC Module]

Engine coolant temperature sensor (ECTS)

ETC Motor [integrated into ETC Module]

Injectors

ECM



Refer to "Inspection CHART FOR DIAGNOSTIC TROUBLE CODES (DTC)" for more information.

[Inspection]

1.

After turning ON the ignition key, ensure that the light illuminates for about 5 seconds and then goes out.

2.

If the light does not illuminate, check for an open circuit in the harness, a blown fuse or a blown bulb.

Self-Diagnosis

The ECM monitors the input/output signals (some signals at all times and the others under specified conditions). When the ECM detects an irregularity, it records the diagnostic trouble code, and outputs the signal to the Data Link connector. The diagnosis results can be read with the MIL or HI-SCAN (Pro). Diagnostic Trouble Codes (DTC) will remain in the ECM as long as battery power is maintained. The diagnostic trouble codes will, however, be erased when the battery terminal or ECM connector is disconnected, or by the HI-SCAN (Pro).



If a sensor connector is disconnected with the ignition switch turned on, the diagnostic trouble code (DTC) will be recorded. In this case, leave the negative (-) battery terminal disconnected for 15 seconds or more until the diagnostic memory is erased.

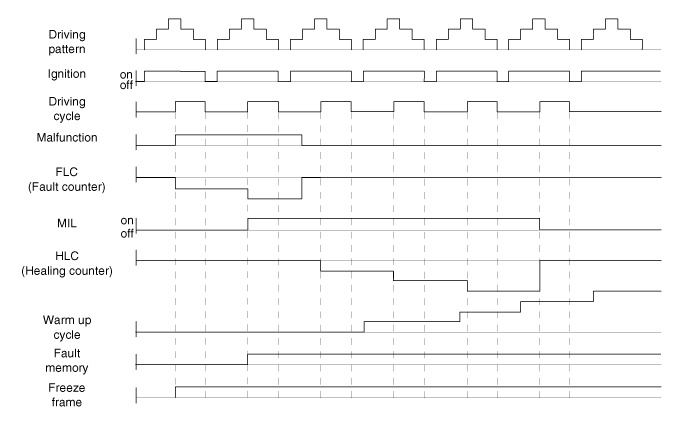

Relationship between DTC and Driving Pattern in EOBD System

1.

When the same malfunction is detected and maintained during two sequential driving cycles, the MIL will automatically illuminate.

2.

The MIL will go out automatically if no fault is detected after 3 sequential driving cycles.

3.

A Diagnostic Trouble Code (DTC) is recorded in ECM memory when a malfunction is detected after two sequential driving cycles. The MIL will illuminate when the malfunction is detected on the second driving cycle.

If a misfire is detected, a DTC will be recorded, and the MIL will illuminate, immediately after a fault is first detected.

4.

A Diagnostic Trouble Code (DTC) will be automatically erased from ECM memory if the same malfunction is not detected for 40 driving cycles.



A "warm-up cycle" means sufficient vehicle operation such that the coolant temperature rises by at least 4°C (40°F) from engine starting and reaches a minimum temperature of 71°C (160°F).

A "driving cycle" consists of engine startup, and vehicle operation beyond the beginning of closed loop operation.

Specifications
Service data Service Data Fuel Delivery System Items Specification Fuel Tank Capacity 60 L (15.8 U.S.gal., ...

Engine Control Module (ECM)
Schematic diagrams ECM Terminal And Input/Output signal ECM Terminal Function Connector [A] Terminal Description Connected to ...
